The Hermitage Estate (Cessnock) - Concrete Sleeper Retaining Walls
Earth Retaining Structures
Discipline
Westcon Landscaping
CUSTOMER
Cessnock, NSW
Location
Challenge
The estate needed retaining walls that followed both the roads and the lots themselves, across ground shaped by up to 2.6 m of cut and fill. Wall heights varied along each run, and each height carried different loading conditions.
Solution

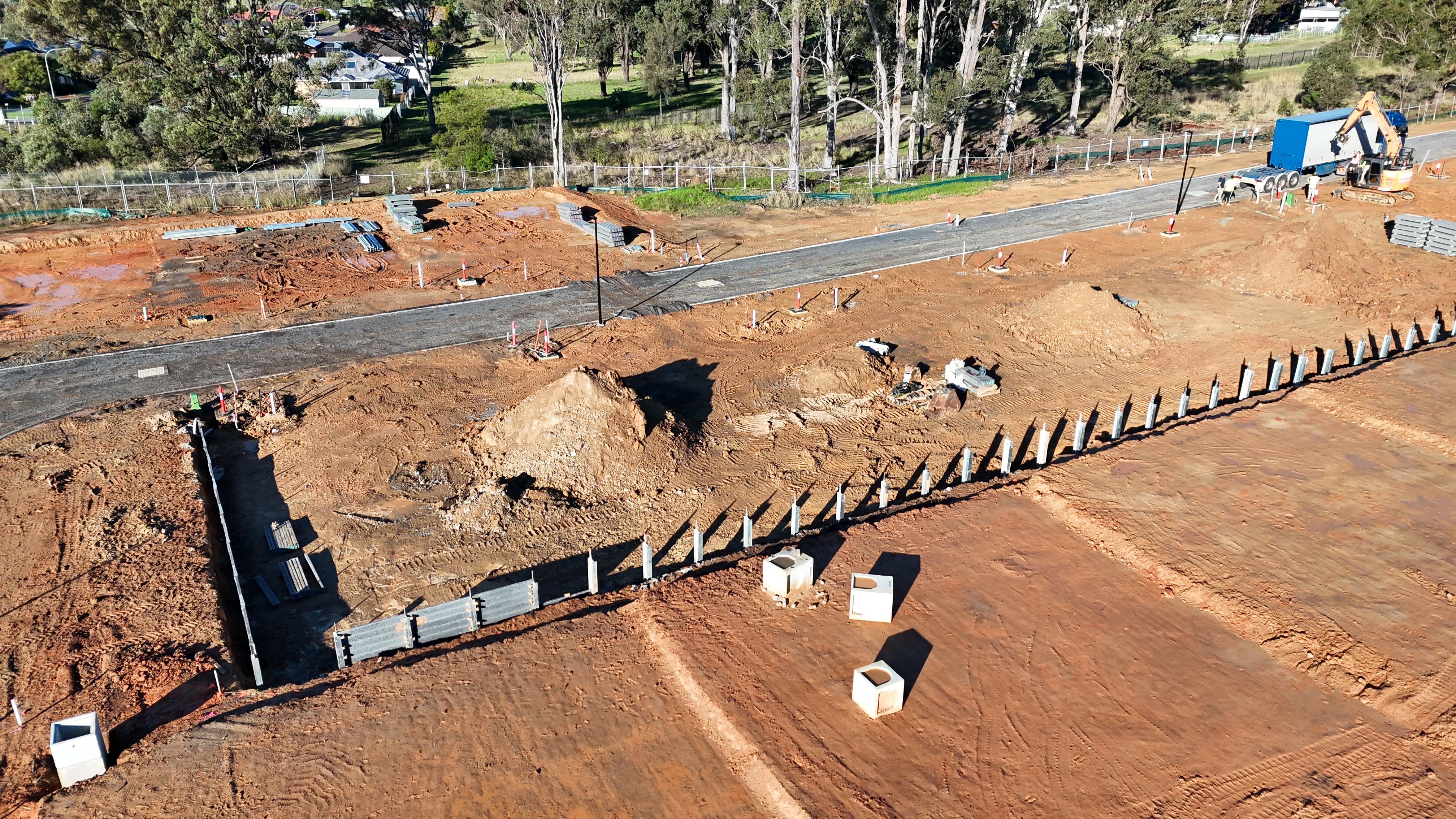

Nearly 300 m of concrete sleeper retaining walls, up to 2.6 m high, designed for a new Hunter Valley over-55s estate and set out from a single buildable schedule.
Key Highlights
Nearly 300 m of concrete sleeper retaining walls across the estate
Six walls up to 2.6 m high, designed for a 60-year life
Galvanised steel posts in bored concrete piers, precast sleeper infill
15% wall cost saving through design optimisation
Key Highlights
Nearly 300 m of concrete sleeper retaining walls, up to 2.6 m high, designed for a new Hunter Valley over-55s estate and set out from a single buildable schedule.
