Concrete Sleeper Retaining Walls, Radcliffe Estate, Wyee NSW
Earth Retaining Structures
Discipline
Westcon Landscaping
CUSTOMER
Wyee, NSW
Location
Challenge

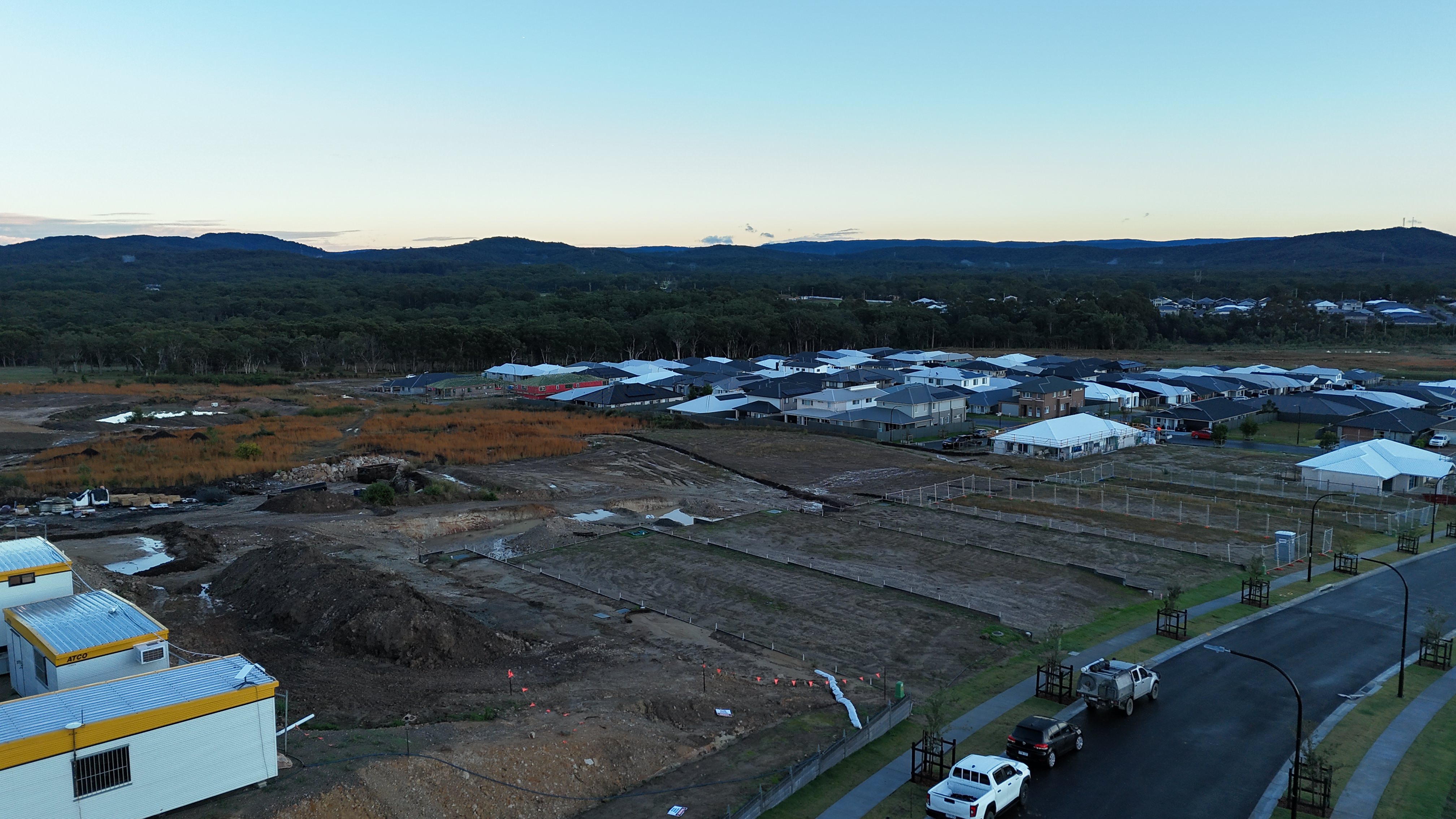

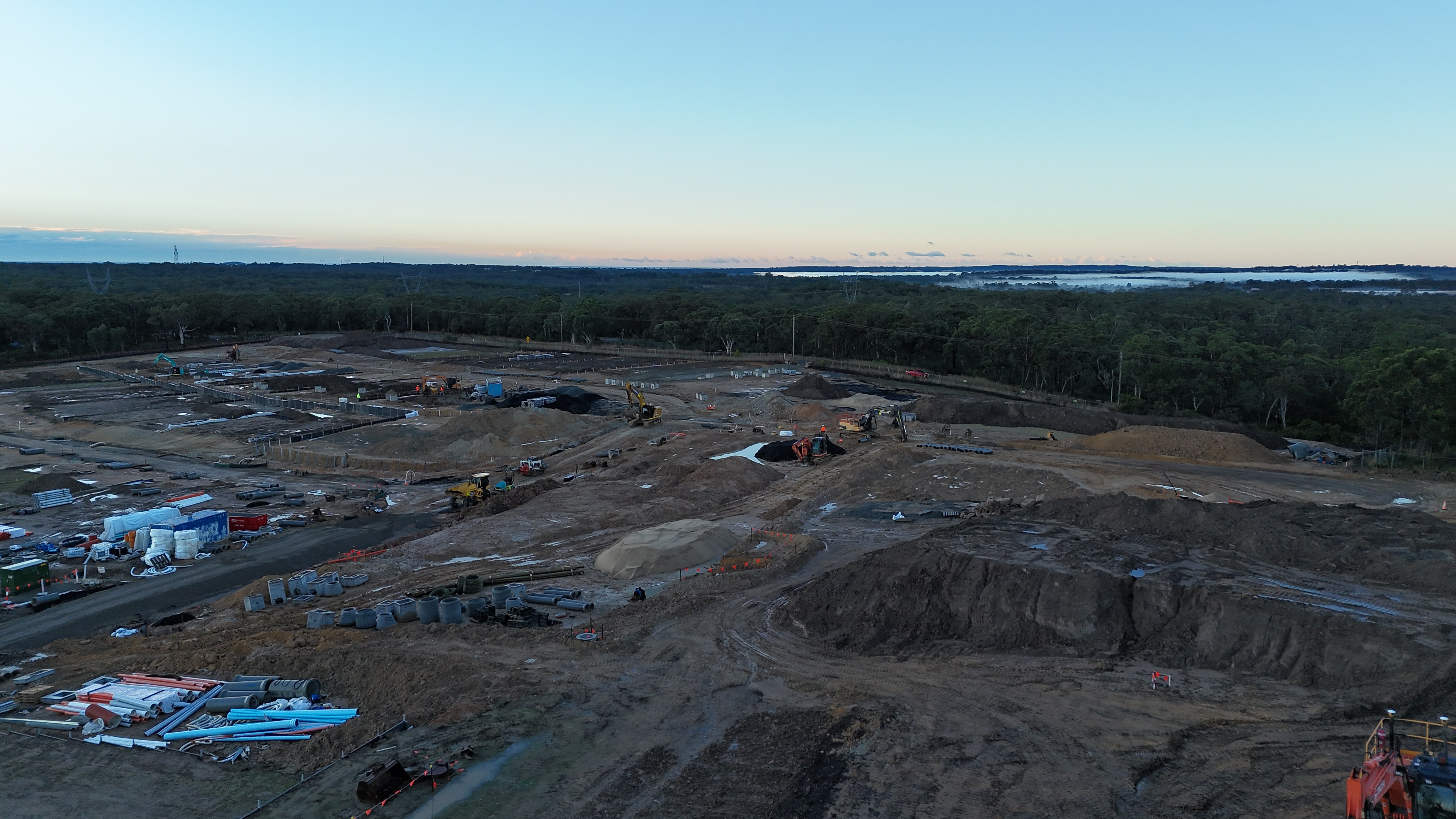

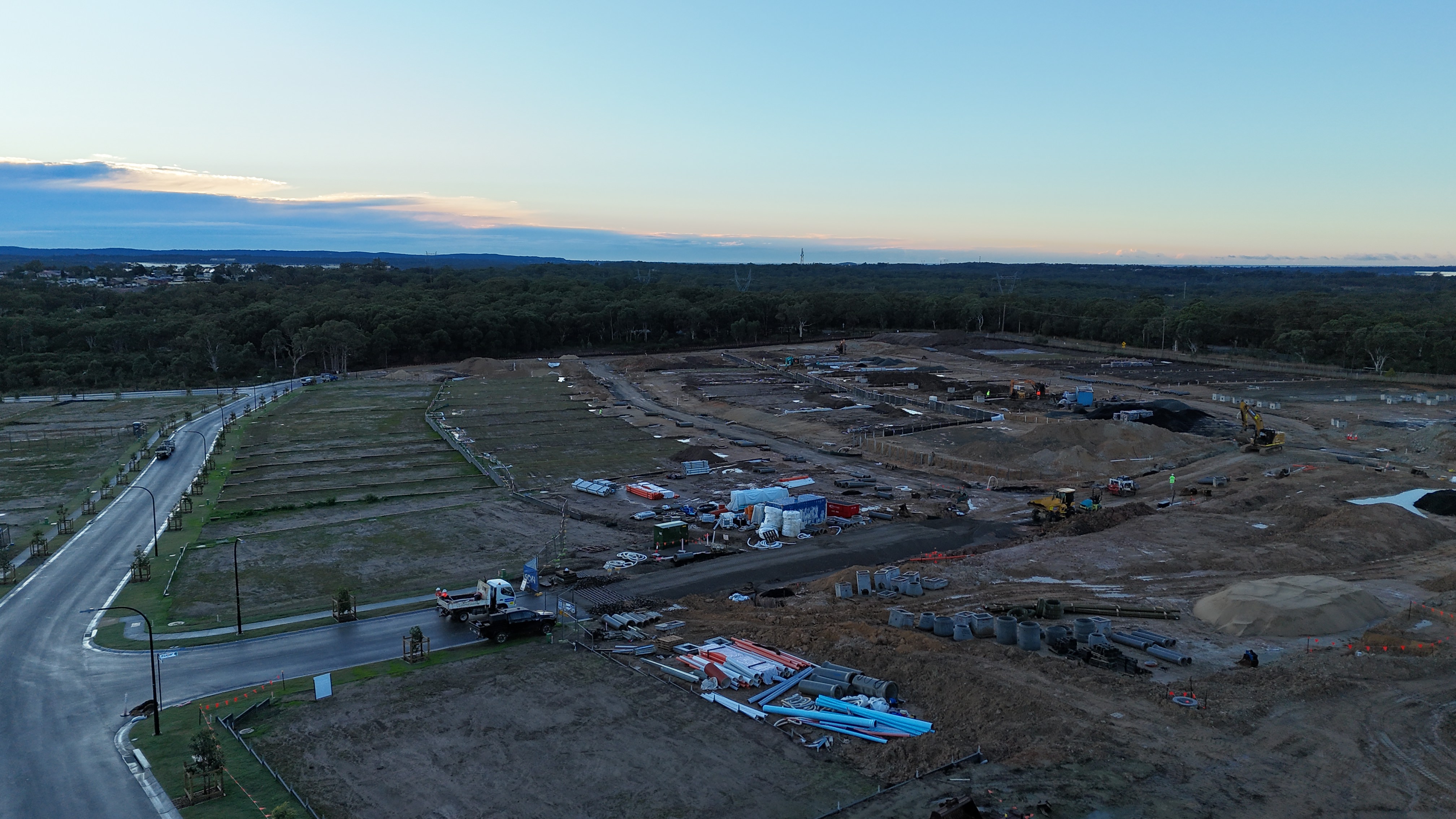

A new subdivision at Wyee needed retaining walls up to about 2.6 m along its road batters. Dozens of short runs, each a different height and level, all founded in variable clay.
Solution

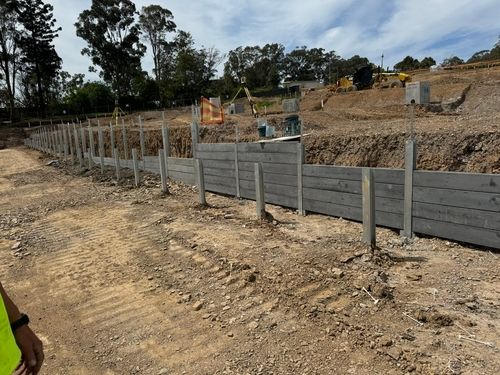

Konceptual designed a single concrete sleeper wall system and sized each post and pier to the ground beneath it. Every run designed to the geotechnical parameters and reactive clay, all to AS4678 for a 60-year design life.
Key Highlights
- Over 40 individual concrete sleeper wall runs across the subdivision
- Walls up to about 2.6 m, each sized to its own ground
- Piers designed per wall to reactive clay and bearing capacity
- Designed to AS4678 Classification B1 for a 60-year design life
